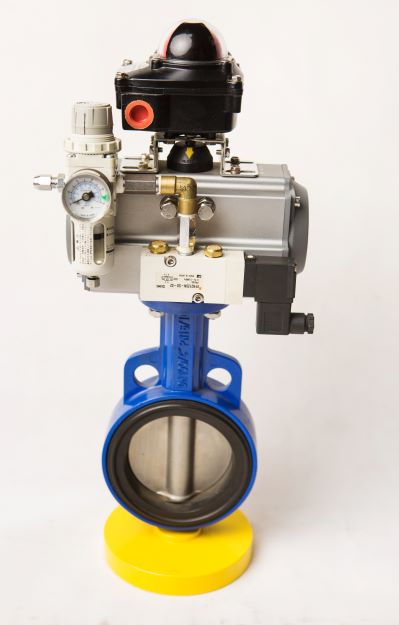

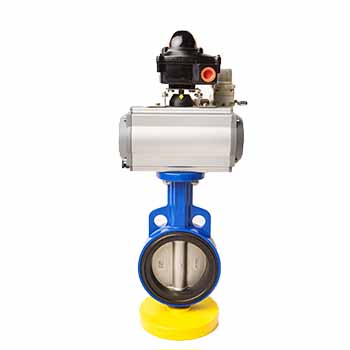

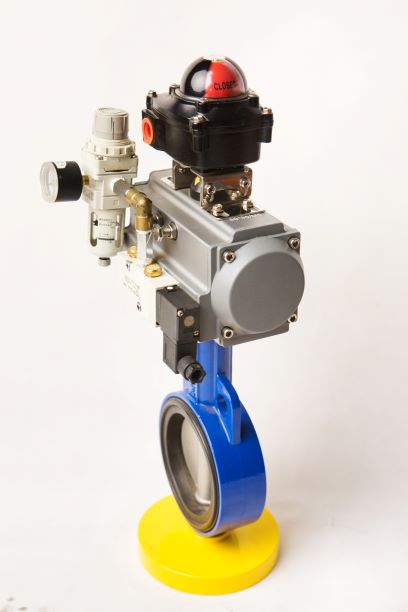

Double acting Pneumatic operated butterfly valve | Air actuated ball valve actuator
Brand Torq
Appearance color Color optional
Environmental Temperature -20℃~+80℃
Types of control ON/OFF, Modulating
Turn Around Angle Scope 0~90°
Machine Weight 1.3kg ~ 98kg
Material Aluminum Alloy
90° Motion Time 16s ~ 85s
Nominal Torque 5 ~ 2500 N.m
Parameters
Brand
Torq
Appearance color
Color optional
Environmental Temperature
-20℃~+80℃
Types of control
ON/OFF, Modulating
Turn Around Angle Scope
0~90°
Machine Weight
1.3kg ~ 98kg
Material
Aluminum Alloy
90° Motion Time
16s ~ 85s
Nominal Torque
5 ~ 2500 N.m
I know
Detail

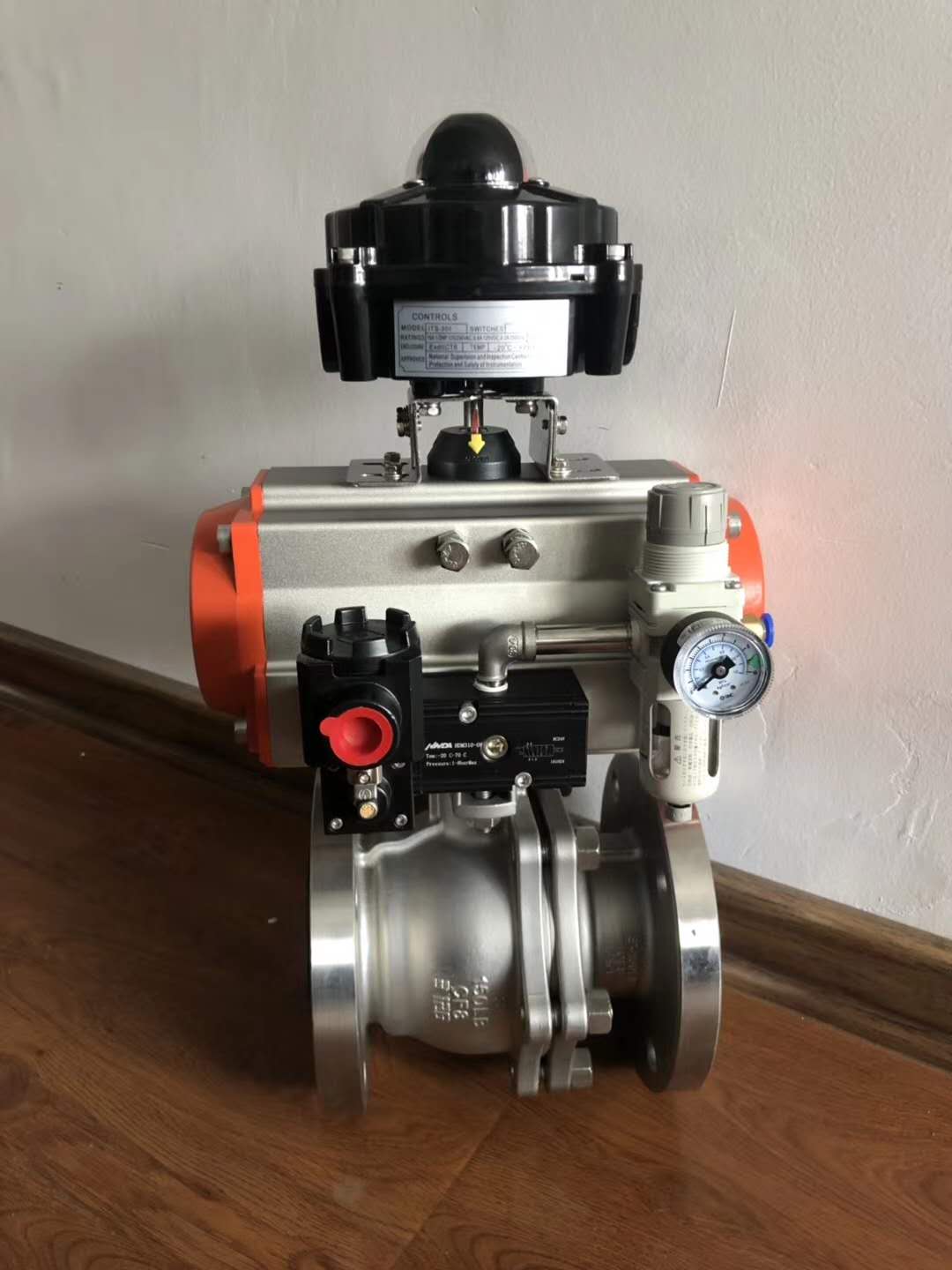

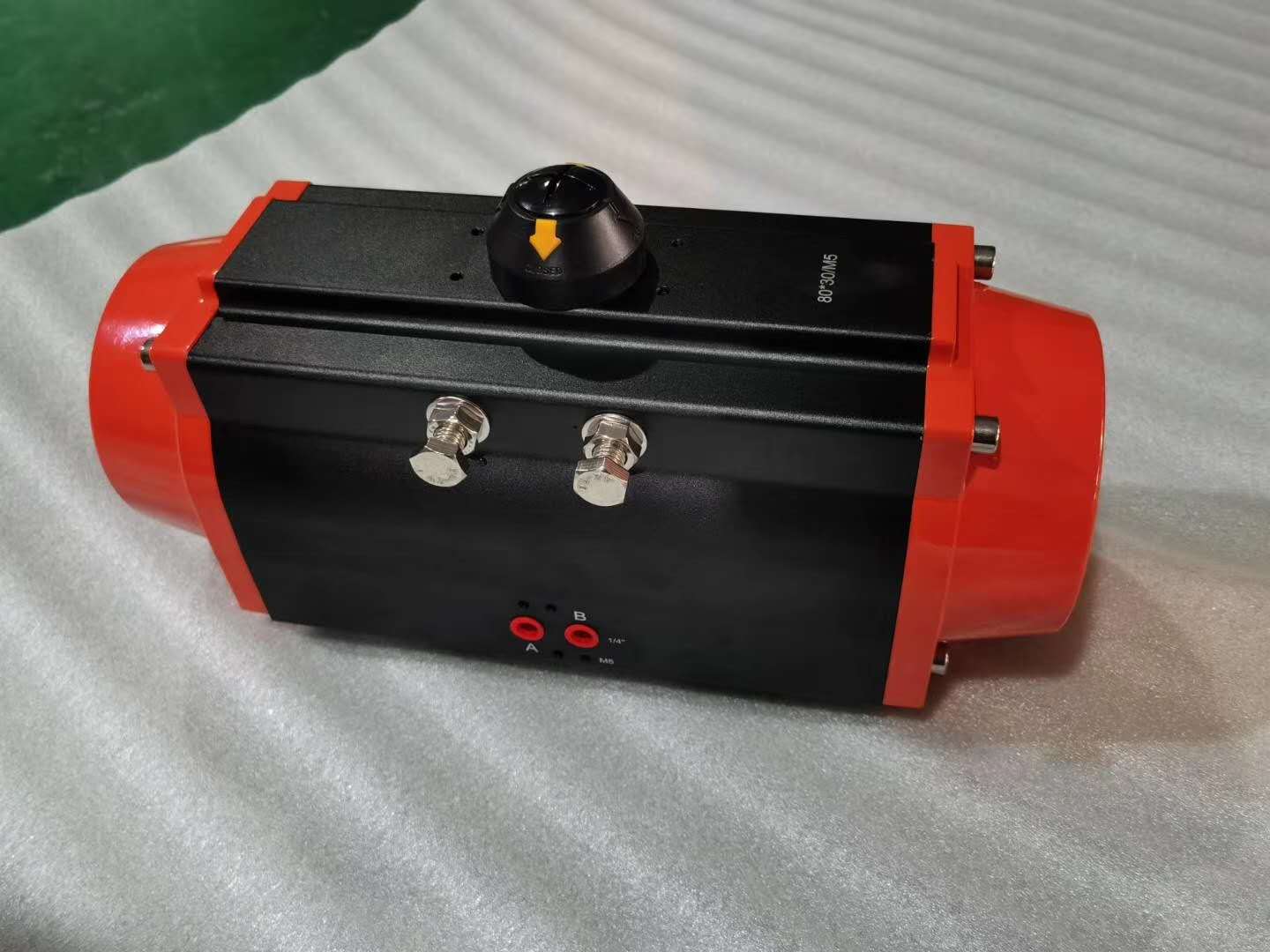

Aluminum Alloy Pneumatic actuators with SS304 screws, Double acting and Single acting(Spring return) pneumatic rotary actuator for ball valve, butterfly valves.   AT series from AT32 to AT270 fro different sizes of ball valves from DN15 to DN 300, butterfly valves from DN 40 To DN1200(mm)

Cost-effective price, Color optional, OEM/ODM supported, 2 years warranty. Fast delivery

For more information, please click download the PDF file: Pneumatic actuator Size Drawing

Pneumatic actuator datasheet
