Spring return/single acting pneumatic actuator valve | Air actuated butterfly Valve, ball valve
Brand Torq
Power Source Air / Handwheel
Appearance color Color optional
Environmental Temperature -20℃~+80℃
Types of control ON/OFF
Turn Around Angle Scope 0~90°
Machine Weight 1.3kg ~ 98kg
Material Aluminum Alloy
90° Motion Time 16s ~ 85s
Nominal Torque 5 ~ 2500 N.m
Parameters
Brand
Torq
Power Source
Air / Handwheel
Appearance color
Color optional
Environmental Temperature
-20℃~+80℃
Types of control
ON/OFF
Turn Around Angle Scope
0~90°
Machine Weight
1.3kg ~ 98kg
Material
Aluminum Alloy
90° Motion Time
16s ~ 85s
Nominal Torque
5 ~ 2500 N.m
I know
Detail

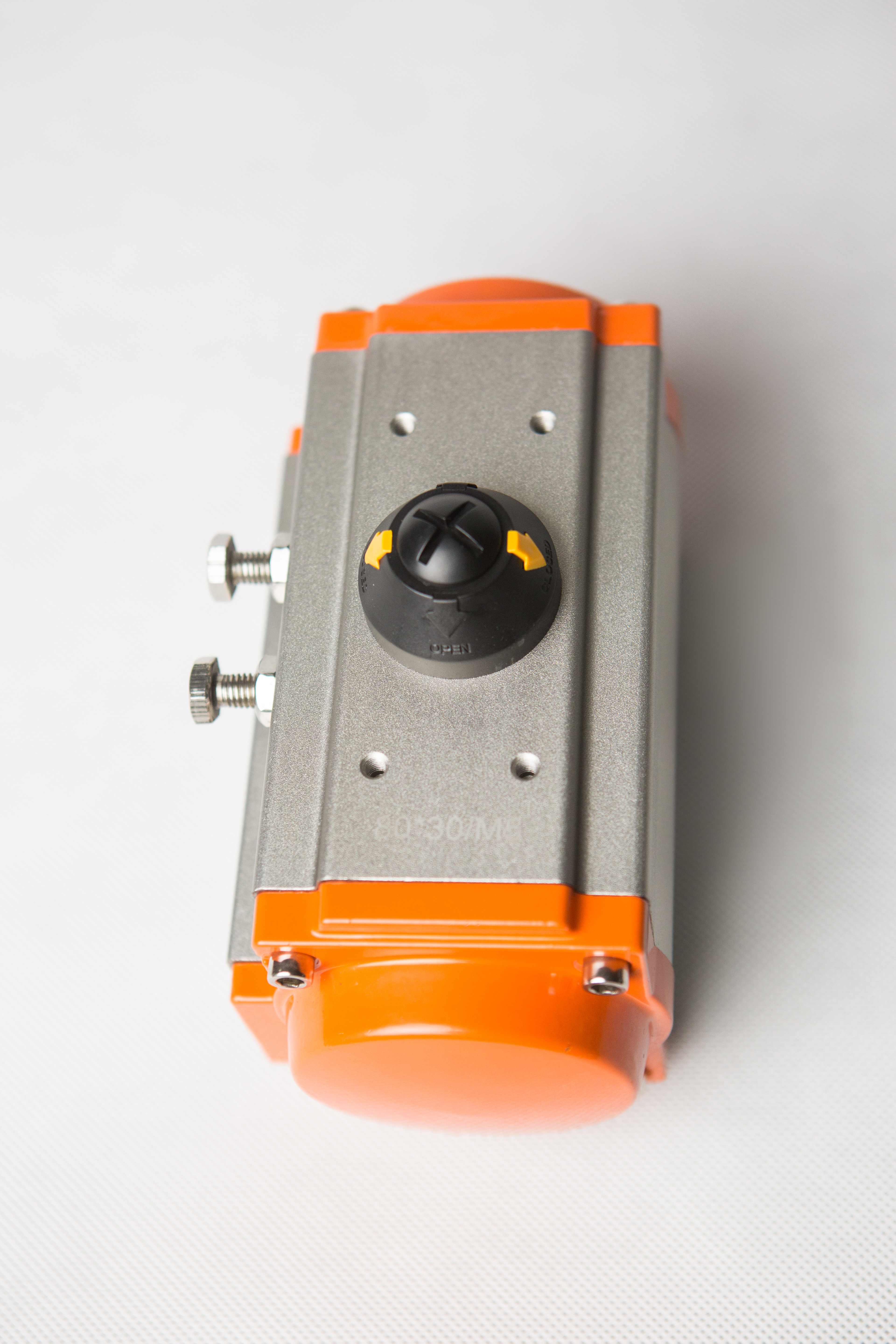

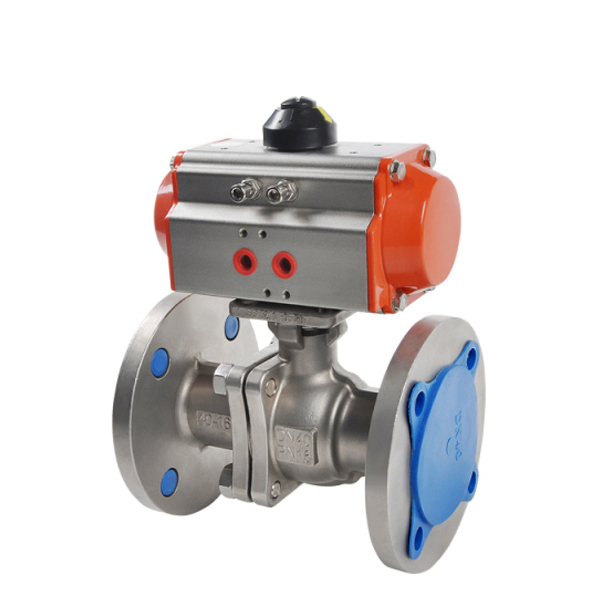

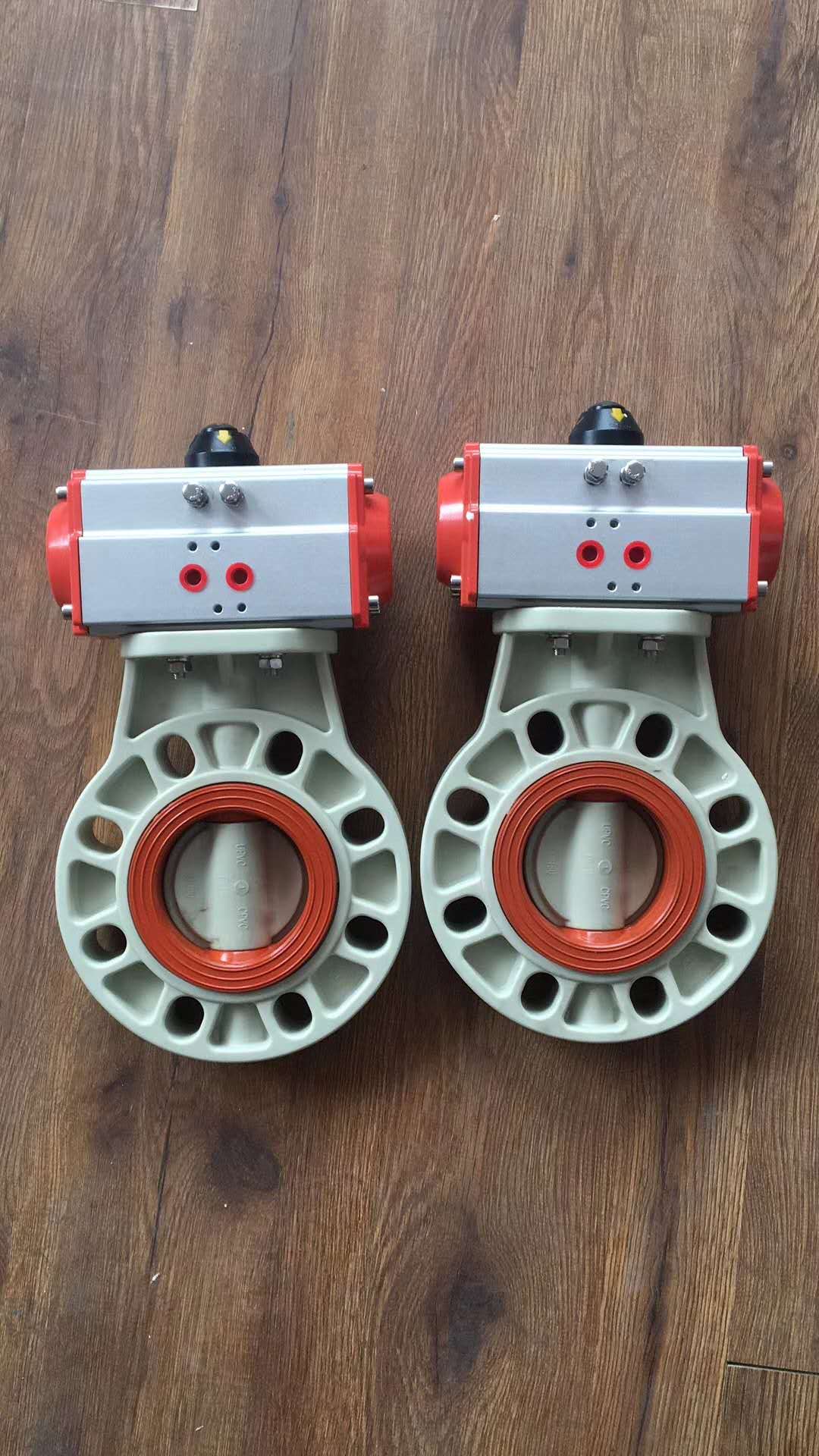

Aluminum Alloy Pneumatic actuators with SS304 screws, Double acting and Single acting(Spring return) pneumatic rotary actuator for ball valve, butterfly valves.   AT series from AT32 to AT270 fro different sizes of ball valves from DN15 to DN 300, butterfly valves from DN 40 To DN500(mm)

Cost-effective price, Color optional, OEM/ODM supported, 2 years warranty

For more information, please click download the PDF file: Pneumatic actuator Size Drawing

Pneumatic actuator datasheet
